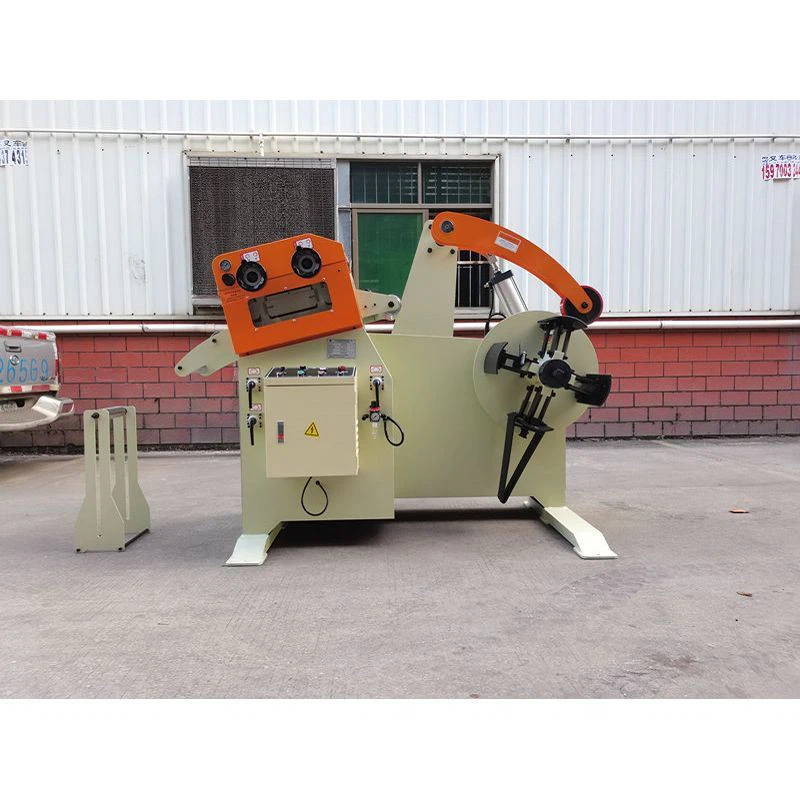

Automatic Coil Decoiler Straightener
YIMING YUL series is one of Automatic coil decoiler Straightener machines which suitable for coil thickness 0.35-3.2mm
Features
YIMING YUL series is one of Automatic coil decoiler Straightener machines which suitable for coil thickness 0.35-3.2mm
Configurations for YUL series Automatic coil decoiler straightener:
Touch screen HMI operation
Photoelectric arc control system
Feed outlet guide frame device
Automatic height adjustment device of feeding line
Overhead disc brake
Material roll head flattening device
Support arm Press arm Retaining arm device
Arc control roller
Variable frequency speed regulation of decoiler motor
Rack oil pressure expansion connecting rod type / wedge type
Main shaft support arm of material decoiler (coil weight ≤ 10t)
Optional configurations for YUL series Automatic coil decoiler straightener:
Oil pressure automatic feeding trolley
Automatic oiling device
Hydraulic head shearing device
Automatic adjustment of Strengthening motor
Specifications for YUL series Automatic coil decoiler straightener:
Model | YUL-200 | YUL-300 | YUL-400 | YUL-500 | YUL-600 |
Coil Width[mm] | 200 | 300 | 400 | 500 | 600 |
Coil thickness [mm] | 0.35-3.2 | ||||
Max Loading[kg] | 1000 | 2000 | |||
Coil inner dia. [mm] | ø460-ø530 | ||||
Coil outer dia.[mm] | ø1200 | ||||
Leveling roller [mm] | ø57x7 (upper 3 and lower 4) front and rear drawing wheels are set ø70 respectively | ||||
Leveling motor [HP] | 2 | 3 | 3 | 5 | 5 |
Adjust Mode | Unitary | ||||
Leveling speed [m/min] | 0～15 | ||||
Uncoiler expansion mode | Manual/hydraulic | ||||
Inductive approach | Induction frame type/photoelectric type | ||||
Supply voltage | AC 380V | ||||
Machine weight[kg] | 900 | 1000 | 1100 | 1300 | 1500 |
L x W x H(m) | 2.0x1.0x1.4 | 2.0x1.1x1.4 | 2.0x1.2x1.4 | 2.1x1.4x1.6 | 2.0*1.5*1.6 |
